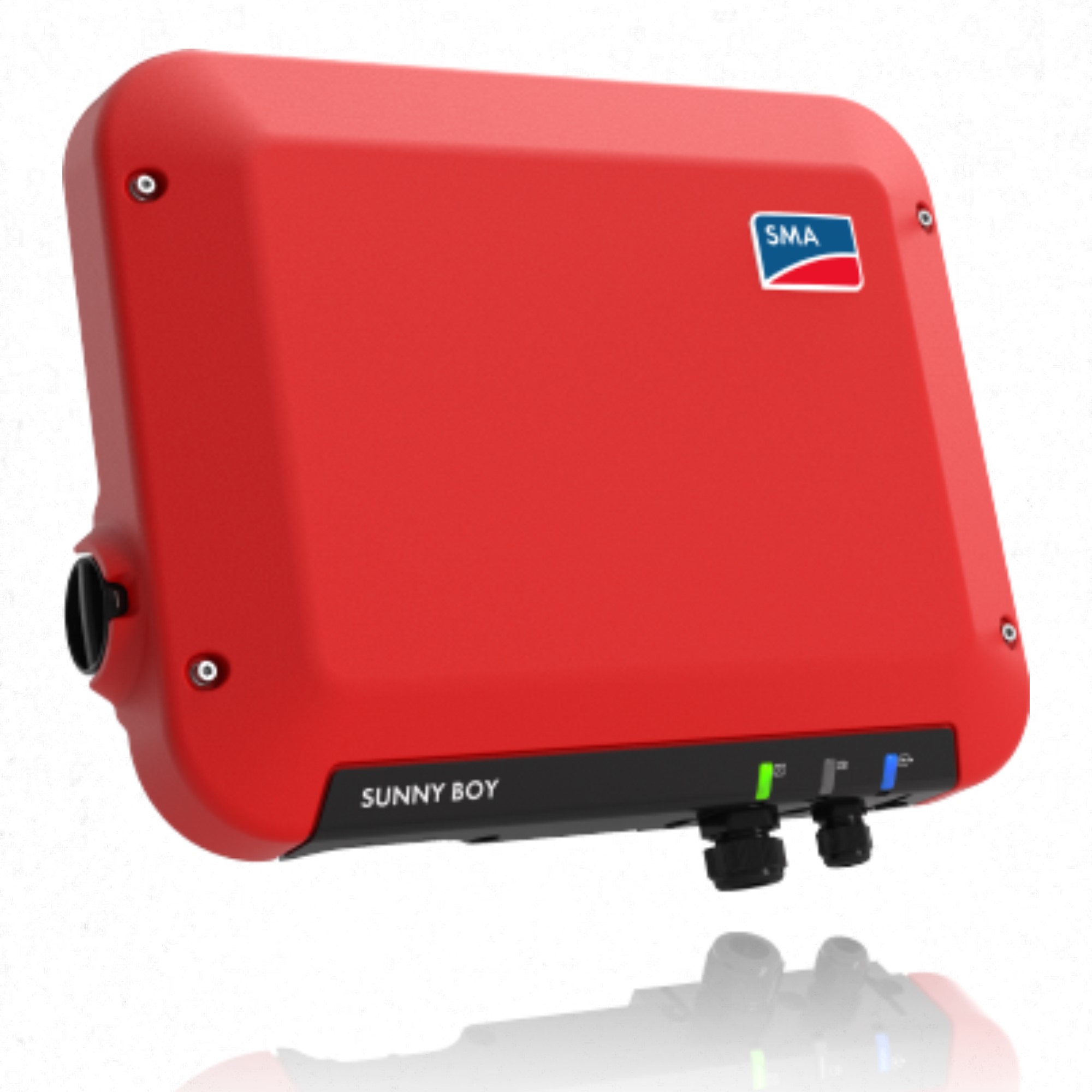

SUNNY BOY 1.5
It's so easy to reap the benefits of solar power: The completely redesigned Sunny Boy 1.5/2.0/2.5 is the perfect inverter for customers who want to take full advantage of their small PV system. Among other features, it enables an increase in consumption of self-generated power, allows versatile uses, and is very easy to integrate into the home network. In addition, its innovative design and new communication concept offer many advantages during installation and commissioning. Thanks to direct communication with the SMA Energy Meter, both limitation to 70 percent, which is required in Germany, and limitation to 0 percent is possible.
The Sunny Boy is easyasy to use with a new installation concept The innovative design of the Sunny Boy 1.5/2.0/2.5 is not only easy to install, but also allows for quick DC and AC connections. For example, because it weighs just 9 kg, it can be suspended from just two screws, with no additional wall mounting bracket. Commissioning is equally easy, because the integrated user interface (Web UI) makes it possible to choose the necessary settings in next to no time – without opening the cover. Rapid commissioning with the intuitive Web UI Easy installation thanks to a low weight of just 9 kg and an intelligent connection concept Broad input voltage range of 80 to 600 V Flexibility in choice of module SUNNY BOY 1.5 / 2.0 / 2.5 easy installation Informative with an innovative communication concept SUNNY BOY 1.5 / 2.0 / 2.5 offers impressive communication features With its focus on what really matters, the Sunny Boy 1.5/2.0/2.5 also offers impressive communication features. The intuitive user interface (Web UI) makes it possible to monitor system data on any smartphone, tablet, laptop or traditional PC. This enables the user to choose between local and online monitoring via Sunny Places and Sunny Portal. New communication concept thanks to Web UI System data monitoring possible on all smartphones and tablets Choose between local and online monitoring via Sunny Portal and Sunny Places Factory-integrated Ethernet and WLAN interface Professional Monitoring via Webconnect with the Sunny Portal Professional Package Video: Installation and Commissioning Video: Configuration via Web UI Sample calculation with SUNNY DESIGN Whether it’s a small PV system with 1 to 2 kW output or a system with 6 kW—the new Sunny Boy is the ideal solution. Sunny Design enables users to calculate their desired system size using individual data. Download sample calculation Sample calculation with SUNNY DESIGN SMA Smart Connected Investment Security Included W
